1 series / 2 series / 3 series / 4 series / 5 series / 6 series / 7 series / 8 series pto shaft

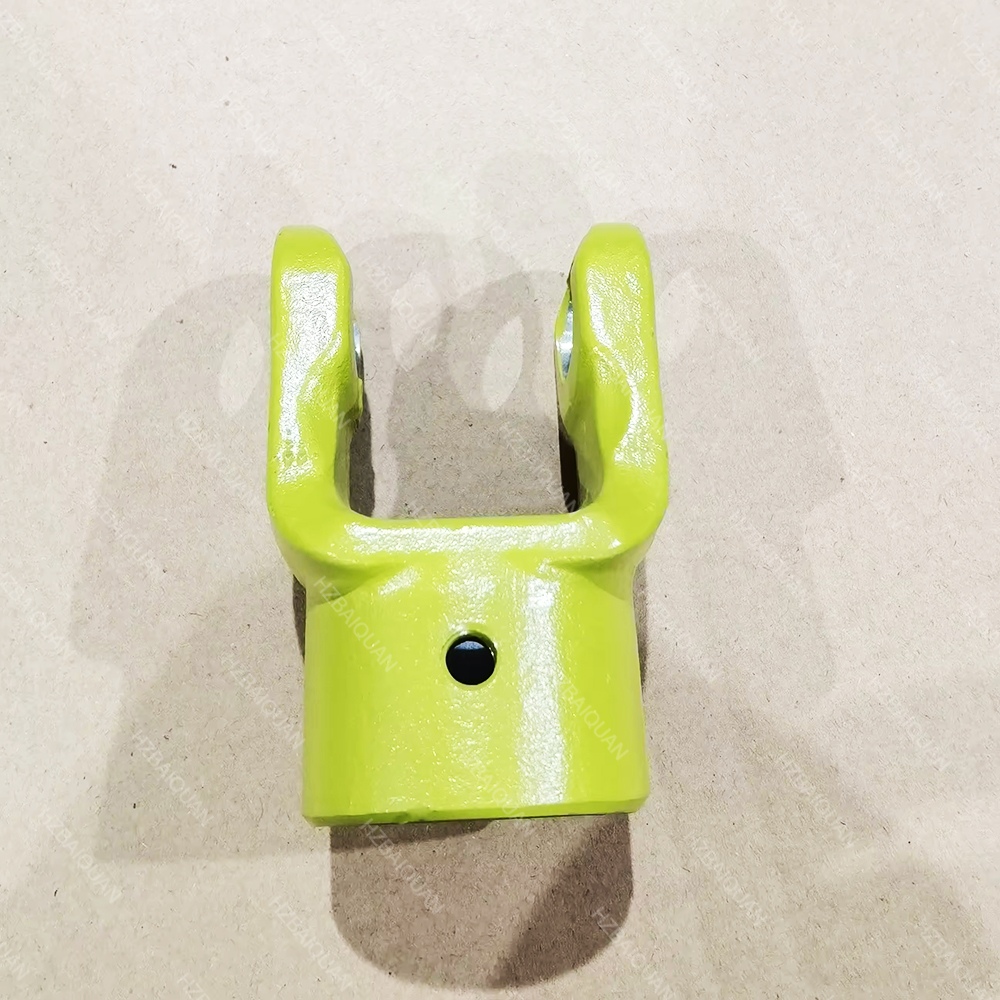

Part name : Plain bore yoke C-keyway & threded hole
Cross dimension : 27 x 74.6 mm
Color : Yellow
Material: Steel 44#, 40Cr.
Process: Forged
Surface: Heat treatment; Rust prevention
Warranty : 12 months
Place of Origin : Zhejiang Province, China

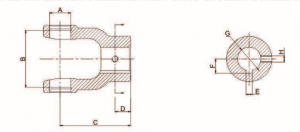

| Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) |
| 1.05C20 | 22 | 54 | 77 | 20 | 6 | 12.8 | 20 | M6 |
| 1.05C22 | 13.8 | 22 | ||||||
| 1.05C25 | 8 | 15.8 | 25 | M8 | ||||
| 1.05C30 | 18.3 | 30 | ||||||
| 2.05C20 | 23.8 | 61.3 | 82 | 20 | 6 | 12.8 | 20 | M6 |
| 2.05C22 | 13.8 | 22 | ||||||
| 2.05C25 | 23.8 | 61.3 | 82 | 20 | 8 | 15.8 | 25 | M8 |
| 2.05C30 | 18.3 | 30 | ||||||
| 3.05C22 | 27 | 70 | 90 | 15 | 6 | 13.8 | 22 | M6 |
| 3.05C25 | 20 | 8 | 15.8 | 25 | M8 | |||
| 3.05C30 | 18.3 | 30 | ||||||
| 3.05C35 | 10 | 20.8 | 35 | M10 | ||||
| 4.05C22 | 27 | 74.6 | 90 | 20 | 6 | 13.8 | 22 | M6 |
| 4.05C25 | 8 | 15.8 | 25 | M8 | ||||
| 4.05C30 | 18.3 | 30 | ||||||
| 4.05C35 | 10 | 20.8 | 35 | M10 | ||||
| 5.05C30 | 30.2 | 80 | 98 | 20 | 8 | 18.3 | 30 | M8 |
| 5.05C35 | 10 | 20.8 | 35 | M10 | ||||
| 5.05C40 | 12 | 23.3 | 40 | M12 | ||||
| 6.05C30 | 30.2 | 92 | 104 | 20 | 8 | 18.3 | 30 | M8 |
| 6.05C35 | 10 | 20.8 | 35 | M10 | ||||
| 6.05C40 | 12 | 23.3 | 40 | M12 | ||||
| 6.05C42 | 24.3 | 42 | ||||||
| 7.05C35 | 30.2 | 106.5 | 117 | 25 | 10 | 20.8 | 35 | M10 |
| 7.05C40 | 12 | 23.3 | 40 | M12 | ||||
| 7.05C42 | 24.3 | 42 | ||||||
| 7.05C45 | 14 | 26.3 | 45 | M14 | ||||
| 8.05C35 | 35 | 106.5 | 121 | 25 | 10 | 20.8 | 35 | M10 |
| 8.05C40 | 12 | 23.3 | 40 | M12 | ||||
| 8.05C42 | 24.3 | 42 | ||||||
| 8.05C45 | 14 | 26.3 | 45 | M14 |
MOQ: 20 PCS
Customized packaging: 100 PCS
Accept : OEM.ODM
CE and ISO9001
Packaging: Neutral packing + wooden box/ pallet
Delivery: Customized order 35- 45Days, stock order 3-5 days.
